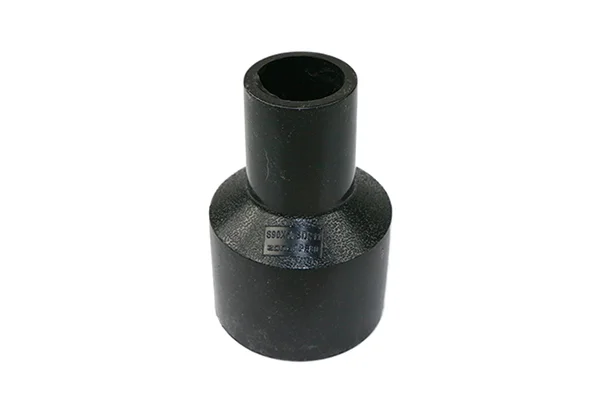

HDPE Buttfusion Fittings - Reducer Adaptor

Key Features of Reducer Adaptor:

Superior Material Properties

Inheriting the corrosion and chemical resistance of HDPE, suitable for water supply, gas supply, chemical industry, and other fields.

Good Flexibility, adaptable to pipe deformation caused by ground settlement or temperature differences.

Reasonable Structural Design

Divided into concentric reducers (centerlines aligned) and eccentric reducers (one side flush, used to keep the top or bottom of the pipe level).

Smooth Inner Wall, Optimized Hydraulic Design at Transition Points, Reducing Turbulence and Pressure Loss.

Multiple Connection Methods

Can be integrated with piping systems via butt fusion, electrofusion, or flange connections to ensure sealing.

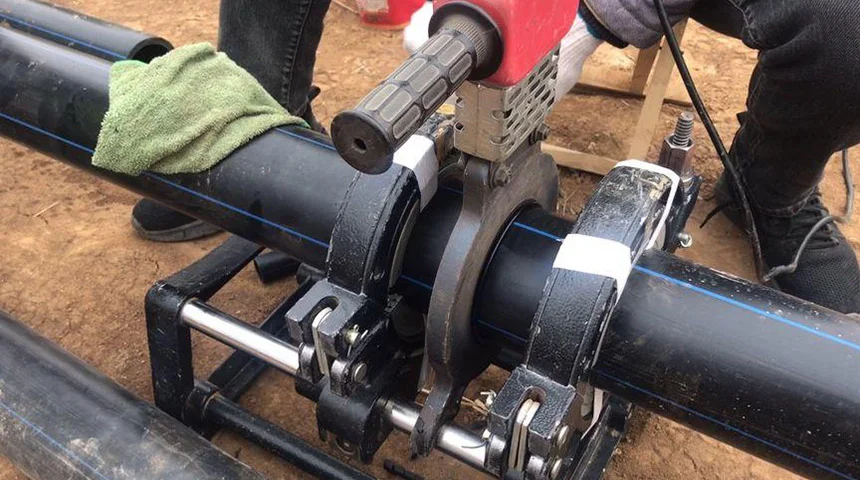

Butt fusion connections achieve an integrated structure, virtually eliminating the risk of interface leakage.

Lightweight and Long Service Life

Lightweight, easy to install, and high fatigue strength.

Service life can reach over 50 years, maintenance-free.

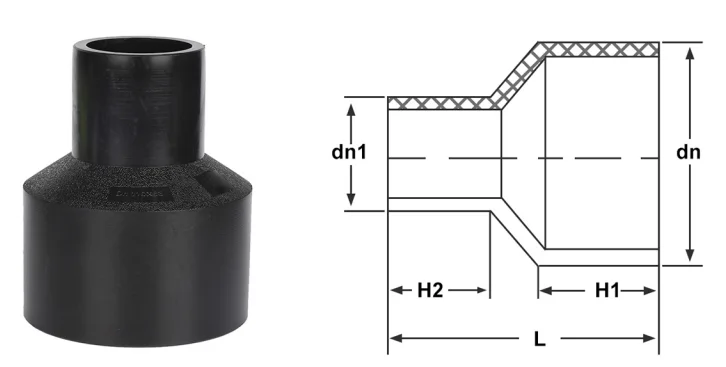

HDPE Buttfusion Reducer Adaptor Technical Specifications

Material：HDPE (PE80/PE100)

Connection Methods：Butt fusion

Pressure Rating：PN1.0MPa, PN1.6MPa PN2.0Mpa

Size Range：DN20mm ~ DN800mm (custom sizes available)

Operating Temperature：-40°C ~ +60°C

Color：Black (custom colors like blue/yellow for identification)

Core Functions of Reducer Adaptor：

Adjusting Pipe Diameter to Adapt to System Needs

In a piping network, reducing pipe diameters between main pipes and branch pipes, enabling smooth connections between pipes of different sizes.

For example, when a main pipe (DN315) needs to branch to a smaller pipe (DN200), a reducing fitting is used for the transition.

Optimizes Fluid Dynamics

A smooth diameter transition reduces turbulence and eddies in water or airflow, lowering energy loss.

Avoids water hammer effects caused by sudden diameter changes, protecting the piping system.

Saves space and cost

An alternative to using multiple fittings to achieve diameter changes, simplifying installation.

Reduces connection points, lowering the probability of leaks and maintenance costs.

Adapting to Special Layout Requirements

Eccentric reducers keep the bottom or top of the pipe level, preventing liquid accumulation or air pockets. They are commonly found at drainage or pump station inlets and outlets.

Enhancing System Flexibility

They facilitate the expansion or modification of piping systems, such as connecting new-sized branch lines to existing pipelines.
