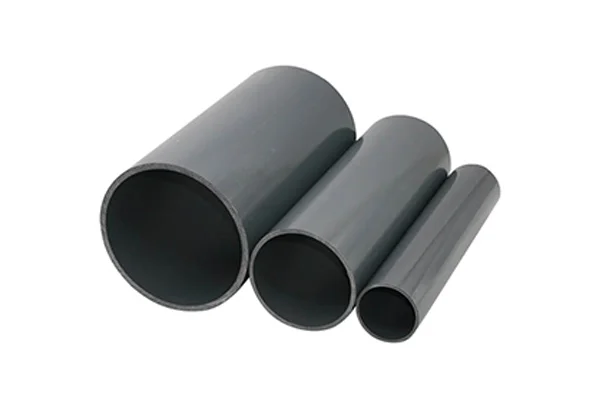

ASTM D1785 UPVC Pipe

SIFFO is a leading manufacturer specializing in high-performance plastic piping systems, dedicated to providing safe, durable, and eco-friendly UPVC water supply pipes for global clients. With advanced production technology, stringent quality control, and exceptional customer service, SIFFO has become a trusted brand in the industry, serving municipal, construction, agricultural, and industrial applications.

SIFFO ASTM D1785 is a standard specification for polyvinyl chloride (PVC) plastic pipes, specifically designed for pressure applications such as water supply, irrigation, and industrial piping systems. UPVC (Unplasticized Polyvinyl Chloride) pipes under this standard are known for their rigidity, durability, and resistance to corrosion and chemicals. These pipes are widely used in municipal water supply, building drainage, and industrial fluid transportation due to their excellent mechanical properties and long service life.

▎Features of ASTM UPVC pipe

Hygienic & Safe for Potable Water:

Certified for drinking water, the smooth, non-migrating interior inhibits bacterial growth and biofilm formation, helping to improve water quality by reducing bacterial counts by more than 60%.

Outstanding Mechanical Strength:

Offering 1.5 times the pressure resistance of conventional PVC, our pipes ensure reliable operation under high-pressure conditions (e.g., 1.6MPa) with minimal maintenance needs.

Exceptional Corrosion Resistance:

Formulated with non-lead stabilizers, our pipes withstand acids, alkalis, salts, and organic solvents. Proven in harsh conditions, such as high-acidity wastewater lines, they show no corrosion or leakage after years of service, far outlasting traditional metal pipes.

High Fluid Efficiency:

The ultra-smooth interior (friction coefficient: 0.009) enhances flow capacity by up to 30% versus cast iron. This ensures superior drainage efficiency, preventing water accumulation and structural damage.

Lightweight & Cost-Effective Installation:

At only 1/5 the density of iron, our pipes reduce handling and installation time by up to 60%, lowering overall project costs significantly.

Long Service Life & Low Maintenance:

Designed for over 50 years of use, our pipes feature UV and aging resistance. Real-world installations show less than 5% performance degradation after 20 years, reducing lifecycle maintenance costs by over 40%.

Fully Recyclable & Sustainable:

We support a circular economy—100% of pipe material can be recycled. Pipes made from recycled content meet the same performance standards as new ones while reducing carbon footprint by 28% per kilometer.

Flame Retardant & Safe:

With an oxygen index ≥45, the pipes are self-extinguishing within seconds upon flame removal, enhancing fire safety and helping to contain hazards.

▎ASTM D1785 UPVC Pipe Specifications

Material：   UPVC (Unplasticized Polyvinyl Chloride)

Connection Methods: Rubber Ring Socket Joint,Solvent cement jointing

Size Range：1/2inch to 24inch

Standard: ASTM D1785 – Standard specification for PVC plastic pipes, Schedule 40, 80, and 120

Operating Temperature：-20°C ~ +70°C

Color：Grey,Blue, White,Green (custom colors also are available)

▎ASTM D1785 UPVC Pipe Application Fields

Municipal Water Supply and Drainage Systems

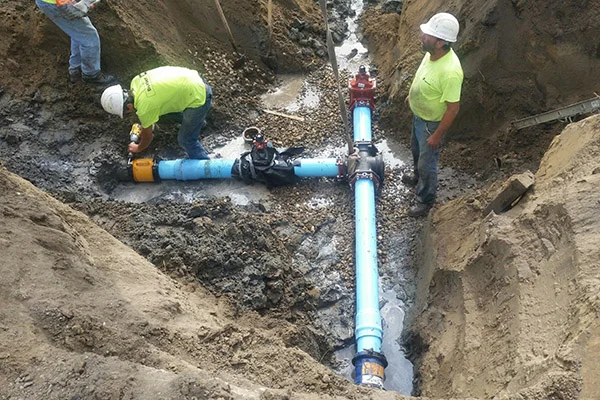

Municipal Water Supply Networks: With excellent hygienic performance, corrosion resistance, and long service life, they are widely used in main urban water supply pipes, branch networks, and direct drinking water systems to ensure safe and stable water quality.

Drainage and Sewage Treatment: High corrosion resistance and a smooth inner wall make them ideal for sewage and rainwater discharge and sewage treatment plant piping, especially suitable for conveying industrial wastewater and domestic sewage.

Industrial Piping Engineering

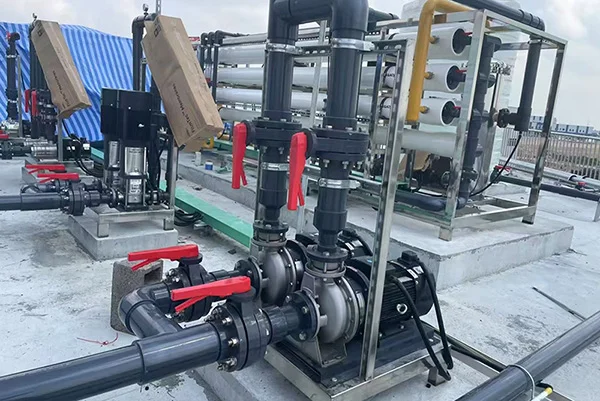

Chemical and Electronic Industries: Excellent resistance to acid, alkali, and solvent corrosion makes them perfectly suited for process wastewater, exhaust gas emissions, and chemical media transportation pipelines in chemical plants, electronics factories, and electroplating plants.

Industrial Park Piping Networks: High compressive strength and durability meet the needs of centralized water supply, circulating water systems, and high-pressure water supply networks within industrial parks.

Building Construction

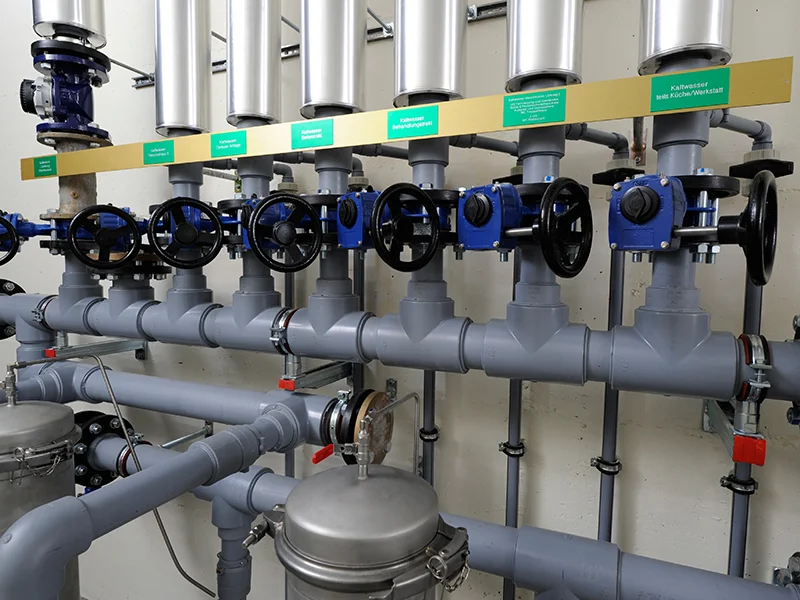

Building Water Supply and Drainage: Lightweight, easy to install, and flame-retardant, making it widely used in indoor and outdoor water supply, drainage, and rainwater systems of high-rise buildings, residential communities, and commercial complexes.

Fire Sprinkler Systems (Specific Certified Products): Products that meet flame-retardant standards and have strong pressure resistance, suitable for branch pipes and other parts of fire sprinkler systems.

Agricultural Irrigation and Water Conservancy Applications

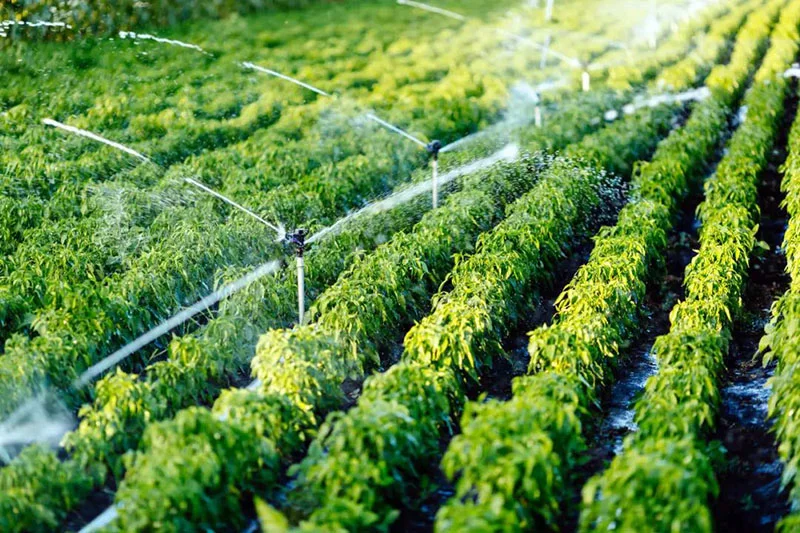

Water-Saving Irrigation Pipelines: Smooth inner walls and low hydraulic loss facilitate long-distance water transport and efficient water-saving irrigation, suitable for water supply pipelines in greenhouses, farmland, and orchards.

Ventilation and Cable Protection

Building Ventilation Ducts: Excellent flame-retardant and self-extinguishing properties, suitable for ventilation and exhaust ducts in basements, parking lots, and commercial buildings.

Cable Protection Conduits: Corrosion resistant, with good insulation and high strength, commonly used for underground or exposed protection conduits for power and communication cables.

▎FAQ

1. What is ASTM D1785 UPVC pipe?

ASTM D1785 UPVC pipe is a rigid polyvinyl chloride (PVC) pressure pipe manufactured to the dimensional, performance, testing, and marking requirements of ASTM D1785. The standard covers Schedule 40, Schedule 80, and Schedule 120 PVC pipe for the distribution of pressurized liquids.

2. What is ASTM D1785 used for?

ASTM D1785 pipe is primarily used for pressurized liquid applications, including water distribution, industrial fluid transfer, process piping, irrigation, and other systems where PVC is chemically compatible with the conveyed fluid. The appropriate pipe schedule should be selected according to system pressure, temperature, fluid characteristics, and applicable local codes.

3. What is the difference between Schedule 40, Schedule 80, and Schedule 120 PVC pipe?

The main difference is wall thickness and pressure capability. Schedule 40 generally has a thinner wall, while Schedule 80 and Schedule 120 have progressively thicker walls for applications requiring greater pressure resistance. The correct schedule should be selected based on the required operating pressure, temperature, pipe size, and project specifications.

4. Is ASTM D1785 the same as UPVC pipe?

ASTM D1785 specifies PVC plastic pipe, while UPVC refers to unplasticized PVC material. In international B2B markets, ASTM D1785 PVC pressure pipe is often described as ASTM UPVC pipe because rigid, unplasticized PVC is commonly used for these pressure applications. Buyers should always verify the manufacturer's material specification and product marking.

5. Can ASTM D1785 UPVC pipe be used for drinking water?

It can be used for potable water when the specific pipe, formulation, fittings, joining materials, and installation system comply with the applicable drinking-water requirements in the target market. ASTM D1785 itself is a pipe specification and does not by itself constitute a universal potable-water certification. For a drinking-water project, buyers should request the relevant potable-water certification and compliance documentation.

6. How is ASTM D1785 UPVC pipe connected?

Depending on the pipe configuration and project requirements, PVC pressure pipe can be joined using solvent-cemented socket joints or other compatible joining systems. The joining method should be selected according to the pipe and fitting specifications, installation conditions, and applicable standards.

7. What are the advantages of ASTM D1785 UPVC pipe?

ASTM D1785 UPVC pipe offers several advantages for pressure piping applications, including corrosion resistance, a smooth internal surface, relatively low weight compared with many metallic pipes, and convenient handling and installation. PVC also provides good resistance to many chemically compatible fluids.

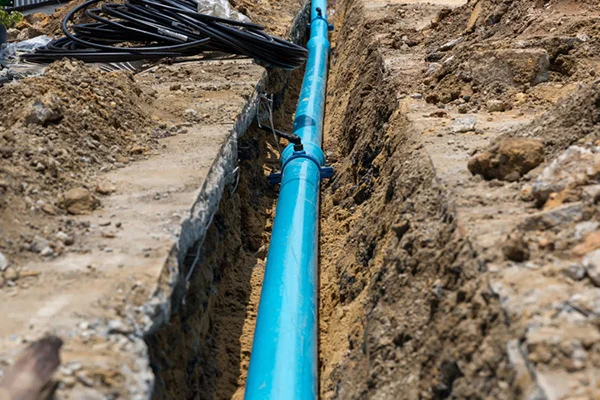

8. Is ASTM D1785 UPVC pipe suitable for underground installation?

Yes. ASTM D1785 PVC pressure pipe can be used in underground applications when the pipe, jointing system, bedding, backfill, burial depth, external loads, and installation procedure are properly designed for the project conditions. Engineering requirements should be reviewed before installation.

9. Can ASTM D1785 PVC pipe be used for industrial applications?

Yes. ASTM D1785 PVC pipe can be considered for industrial fluid-transfer applications when the conveyed chemical is compatible with PVC and the operating pressure and temperature are within the pipe's design limits. Chemical compatibility should be evaluated before selecting the piping system.

Get a Quote for ASTM D1785 UPVC Pipe

Looking for a reliable ASTM D1785 UPVC pipe supplier for your water, industrial, irrigation, or infrastructure project?

SIFFO provides ASTM-standard PVC pressure pipe solutions with project-based technical support, customized specifications, fittings, and international delivery.

Send us your required pipe size, Schedule, quantity, application, pressure rating, and destination, and our team will recommend the appropriate pipe configuration and provide a competitive quotation.

Request a Quote Today

• ASTM D1785 Schedule 40 / 80 / 120

• Project-specific pipe sizes and specifications

• Matching PVC fittings available

• Technical documentation and product support

• OEM / customized requirements

• International export and project supply
