HDPE pipes for irrigation: drip irrigation, sprinkler irrigation | PE100 & PE4710

▎PE100 and PE4710 Pipes for Reliable Agricultural Water Distribution

SIFFO supplies HDPE pipe for irrigation systems that connect water sources, pumps, storage reservoirs and field distribution networks. From orchard drip irrigation and farm sprinklers to golf course renovation and large water conveyance projects, our pipes provide a flexible, corrosion-resistant solution for moving irrigation water.

Choose PE100 metric pipe or PE4710 pipe specified to the required ASTM dimensional system. Small-diameter coils and larger straight lengths help contractors match the pipeline to the site, installation equipment and delivery schedule.

Send your required diameter, flow rate, operating pressure and destination to request a project quotation.

▎Product Options at a Glance

PN ratings and ASTM pressure ratings use different design bases and reference temperatures. Confirm the applicable standard, operating temperature and pressure class before ordering.

▎Why Choose SIFFO HDPE Irrigation Pipe?

Versatility for Above-Ground and Buried Installations

HDPE can serve pressure pipelines or gravity-fed water conveyance systems when the pipe and layout are designed for the operating conditions. Its flexibility helps installers follow gradual changes in terrain and route around obstacles within the permitted bend radius.

A closed pipeline prevents evaporation along the enclosed route and can reduce seepage losses associated with open channels. Actual water savings depend on the condition of the original system, pipeline integrity and irrigation management.

For exposed installations, specify UV-stabilised black pipe. Allow for solar heating, thermal movement, supports and temperature-related pressure derating. Buried installations require suitable cover, embedment and protection from traffic or agricultural machinery.

Fused Connections That Help Control Leakage

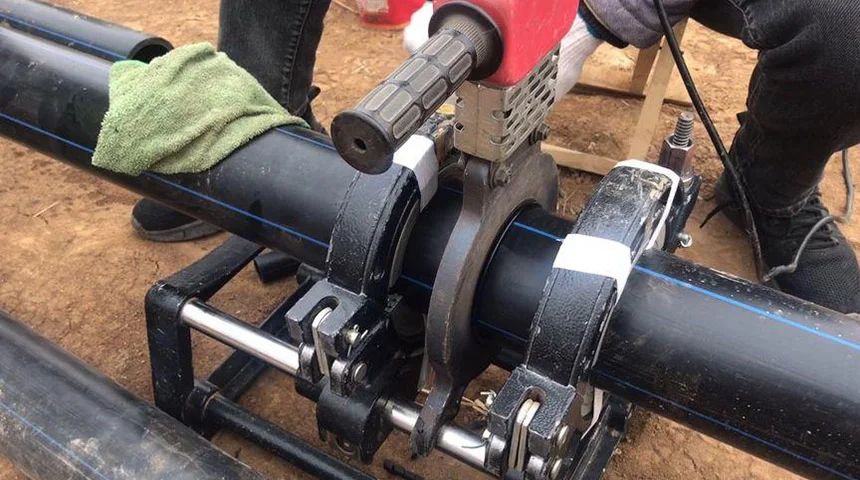

Correctly performed butt fusion joins compatible pipe ends into a continuous pipeline without a separate coupling at each straight-pipe joint. Electrofusion provides another connection option for suitable fittings, branches and restricted working spaces.

These joints help reduce leakage risks and joint separation. Reliable performance still depends on trained operators, approved joining procedures, inspection and pressure testing. Valves, transitions and mechanical connections also require correct selection and assembly.

Corrosion Resistance and Flexibility

HDPE does not rust and avoids the electrochemical corrosion mechanisms that affect metallic pipes. Its flexibility helps accommodate limited ground movement and soil settlement, making it useful in agricultural areas with changing soil moisture.

Long-Term Value

A well-designed HDPE irrigation network can reduce maintenance associated with corrosion and leaking connections. Coils, fused joints and suitable trenchless methods may also reduce installation work and disruption.

Compare total installed and operating costs, including pipe, fittings, fusion equipment, excavation, pumping energy and maintenance. The most economical solution depends on the project rather than pipe price alone.

HDPE also offers abrasion resistance for demanding routes. However, pipes must be protected against sharp rocks, excessive gouging and uncontrolled dragging.

▎Choose the Pipe to Match Your Irrigation Method

HDPE pressure pipe and drip tubing perform different functions. Standard solid-wall pressure pipe is not a substitute for a purpose-designed emitter line.

▎Applications from Small Farms to Large Water Projects

Farms, Orchards and Residential Landscapes

Small-diameter HDPE pipe can supply irrigation zones from pumps, wells or tanks. Coiled supply helps installers lay longer continuous runs around fields, gardens and orchards.

For outdoor service, both suitable PE100 and PE4710 compounds can provide UV resistance when correctly stabilised. Select the material according to the required standard and documentation, rather than assuming PE4710 is the only option for exposed pipe.

Well-pump rising mains require an additional check of tensile loads, pump weight, hanging connections and surge conditions.

Golf Course Irrigation and Renovation

HDPE can accommodate gradual route changes and limited soil movement around fairways and landscaped areas. A fused network is useful where joint restraint and control of underground leakage are priorities.

Pump starts, valve closures and repeated irrigation cycles still require a surge and fatigue assessment. Where ground conditions allow, horizontal directional drilling can reduce surface excavation during renovation. The installation design must account for pulling loads, bend radius and pipe damage limits.

Large Irrigation Mains and Canal Replacement

Larger HDPE pipelines can transfer water from reservoirs, pumping stations and distribution canals to agricultural districts. Enclosing an open channel can substantially reduce conveyance losses, but a project-specific water balance is needed to quantify the improvement.

SIFFO can quote ASTM pipe sizes up to 36 inches, subject to the required material, DR and production availability.

▎Coiled Supply: Fewer Joints and Faster Laying

Eligible small-diameter HDPE pipes can be supplied in coils. Coil diameter and length depend on pipe size, wall thickness, handling limits and transport arrangements.

Straight HDPE pipes can also be butt-fused directly without separate couplings. Coils reduce the number of fusion operations, which can save labour and simplify installation where access and handling conditions are suitable.

▎Fertigation and Chemigation Compatibility

HDPE is compatible with many diluted aqueous fertiliser solutions used in irrigation. Potential applications include solutions containing urea, ammonium sulphate, potassium nitrate and phosphate-based fertilisers.

Compatibility must be checked against the actual formulation, concentration, temperature and exposure time. Concentrated stock solutions, strong oxidising chemicals and some pesticide solvents need separate assessment.

▎Water Efficiency in Dry Regions

HDPE mains can support drip and microirrigation systems that deliver controlled quantities of water near the crop root zone. This is valuable in arid and semi-arid areas of the Middle East and Africa, as well as seasonally dry farming regions in Southeast Asia.

Pipe material alone does not determine irrigation efficiency. Filtration, emitter selection, soil conditions, scheduling and pressure control all affect results. A reliable distribution network helps the system maintain the flow and pressure needed for uniform application.

▎Why Work with Shandong SIFFO Plastic Technology Co., Ltd.?

SIFFO operates production bases in Linyi, Shandong, and Nanjing, Jiangsu, covering more than 150,000 m². The company has more than 60 production lines across its pipe and fitting operations, with total annual production capacity exceeding 450,000 tonnes, including more than 200,000 tonnes of HDPE products.

For irrigation orders, SIFFO can coordinate pipe specifications, compatible fittings, markings, production lengths, packing and technical documentation. Inspection requirements, certification scope and acceptance conditions should be agreed before production.

▎FAQ

Should I choose PE100 or PE4710 irrigation pipe?

Choose according to the project’s material, dimensional and design standards. PE100 is commonly specified within ISO/EN systems, while PE4710 is commonly used within ASTM/AWWA systems. Compare complete pipe specifications rather than treating the material names as equivalent pressure ratings.

How do I select the diameter and pressure rating?

Calculate required flow, allowable head loss, route length and elevation changes. Check maximum operating pressure, pump shut-off pressure, surge, temperature and the ratings of fittings and valves. Select the SDR or DR after these conditions are established.

Can HDPE irrigation pipe last more than 100 years?

Industry guidance supports design lives exceeding 100 years for properly designed, installed and operated PE4710 water systems under suitable conditions. This is not a universal irrigation service-life guarantee. Temperature, pressure cycling, chemical exposure and installation quality affect the assessment.

Can SIFFO supply pipes, fittings and export documentation together?

Specify the full bill of materials, joining method and destination requirements when requesting a quotation. SIFFO can coordinate compatible fittings, packing details and agreed technical and inspection documents. Confirm the final scope in the order.

What are the MOQ, delivery time and after-sales arrangements?

These depend on diameter, SDR/DR, quantity, stock status and inspection requirements. The quotation should state the minimum order, production schedule and shipment terms. Agree warranty coverage and technical support in the contract; retain pipe markings, batch records and installation records for any quality enquiry.

▎Request a Quotation for Your Irrigation Project

Looking for HDPE pipe for irrigation on a farm, golf course or large water transfer project? Send SIFFO your irrigation method, pipe standard, diameter, flow rate, pressure, operating temperature, quantity and delivery destination.

Our team can prepare a specification-based quotation covering pipe, connection options, packing and the agreed documentation.
