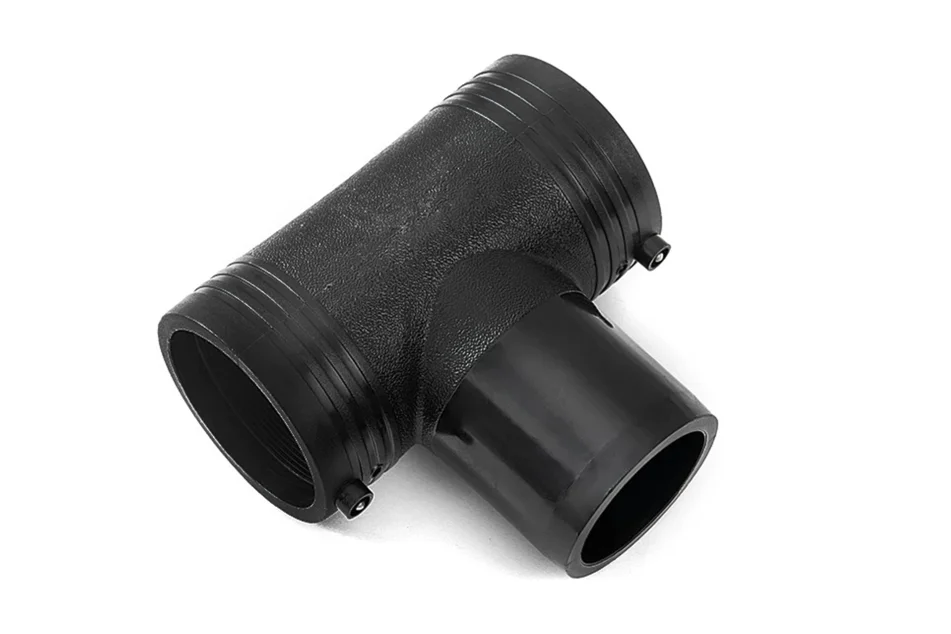

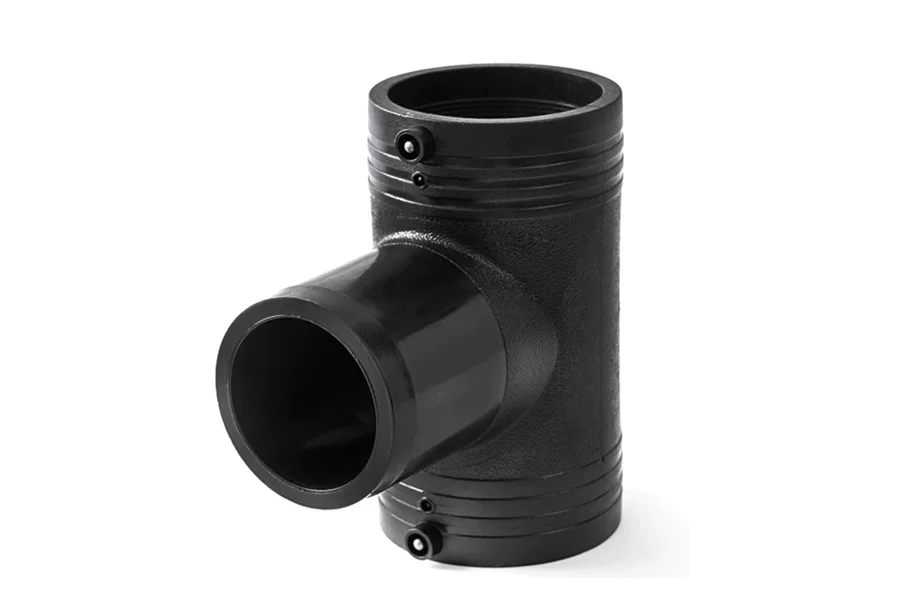

HDPE Electrofusion Equal Tee Fitting

The HDPE Electrofusion Equal Tee Fitting is designed to create a strong and reliable branch connection in HDPE pipeline systems where three pipes of the same diameter meet. Manufactured from premium PE100 high-density polyethylene, this fitting features integrated electrofusion heating coils that ensure uniform melting and bonding during the welding process.

When activated by an electrofusion control unit, the embedded resistance wires heat the contact surfaces of both the fitting and the HDPE pipes, forming a fully homogeneous joint. This results in a permanent, leak-free connection capable of withstanding high internal pressure and environmental stress.

With excellent resistance to corrosion, chemicals, and aging, HDPE electrofusion equal tee fittings provide long-term performance and minimal maintenance, making them ideal for modern infrastructure and utility pipelines.

HDPE Electrofusion Equal Tee Fitting Features & Advantages

Advanced Electrofusion Technology

• Integrated heating wires ensure uniform heat distribution

• Smart fusion indicators for quality assurance

• Compatible with all standard electrofusion welding machines

Superior Material Properties

• Material: PE100 virgin polyethylene

• Pressure Rating: PN10-PN25 (SDR11/SDR17.6)

• Size Range: DN20mm to DN630mm

• Working Temperature: -40°C to +60°C

Installation Excellence

• Quick, tool-free connection process

• No additional fittings or flanges required

• Suitable for trenchless installation methods

Long-Term Reliability

• Corrosion and chemical resistant

• UV stabilized for outdoor applications

• 50+ years service life expectancy

• Leak-proof monolithic joint structure

HDPE Electrofusion Equal Tee Fitting Applications

✅ Municipal Water Supply – Potable water distribution networks

✅ Gas Distribution – Natural gas and LPG pipeline systems

✅ Industrial Piping – Chemical processing, mining slurry transport

✅ Agricultural Irrigation – Large-scale farming water systems

✅ Wastewater Management – Sewage and drainage infrastructure

✅ Geothermal Systems – Renewable energy heating/cooling networks
