When a major Southeast Asian water authority faced critical infrastructure challenges with aging ductile iron pipelines, Shandong SIFFO delivered a comprehensive PE100 HDPE piping solution that transformed their water distribution network. This case study demonstrates how SIFFO's technical expertise, quality manufacturing, and dedicated installation guidance services resolved complex engineering challenges while ensuring long-term operational reliability.
The Challenge: Legacy Infrastructure at Breaking Point
The client operated a 35-year-old water distribution system serving 2.5 million residents, plagued by:

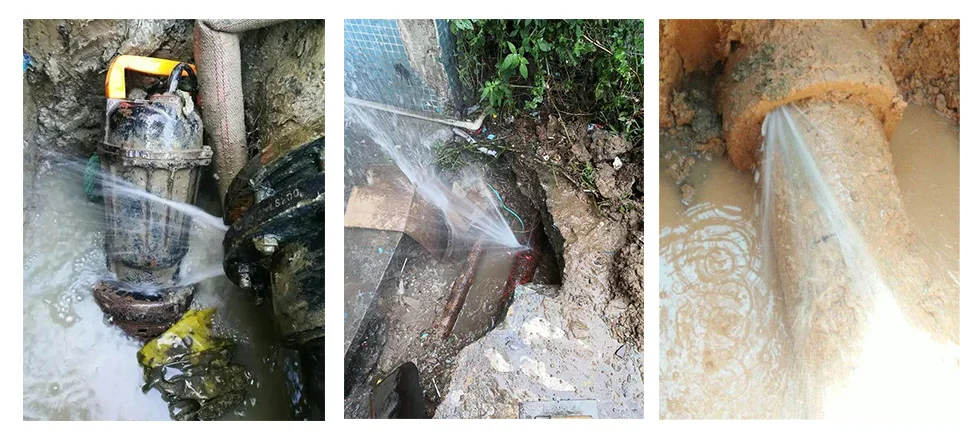

Corrosion-Induced Leakage: Ductile iron pipes suffered severe internal and external corrosion, resulting in 28% non-revenue water loss
Pressure Instability: Frequent pipe bursts caused service interruptions and contamination risks
Chemical Precipitation: Iron oxide buildup reduced flow capacity by up to 40% in critical trunk lines
Seismic Vulnerability: Rigid iron pipe systems showed poor resistance to ground movement in earthquake-prone regions
High Maintenance Costs: Emergency repairs averaged $450,000 annually, with cathodic protection systems requiring constant monitoring
The authority required a modern, corrosion-resistant solution capable of handling PN16 operating pressure (16 bar) while ensuring potable water safety compliance with ISO 4427 and local health standards.
The SIFFO Solution: PE100 HDPE Integrated System

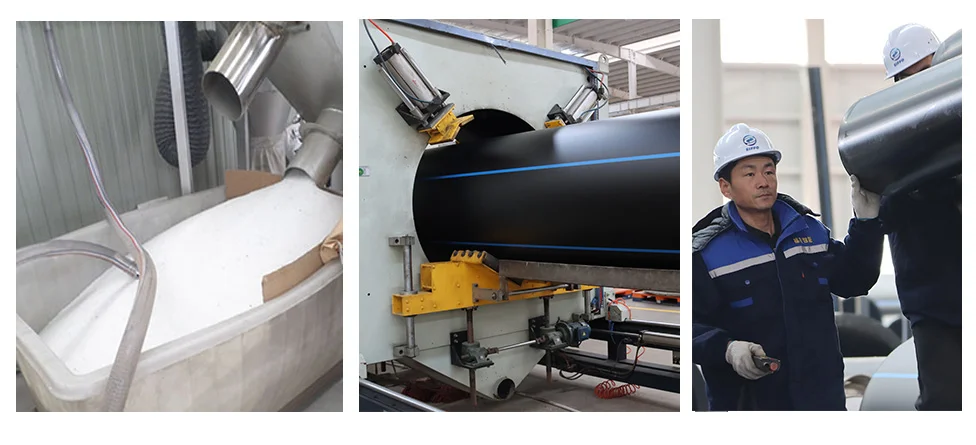

Shandong SIFFO engineered a complete PE100 HDPE piping infrastructure utilizing SDR11 (PN16) and SDR17 (PN10) pipe classifications to optimize pressure management across the network.
| Parameter | SIFFO PE100 Implementation |
|---|---|
| Material Grade | PE100 (Minimum Required Strength: 10 MPa) |
| Pressure Ratings | PN10 (SDR17), PN16 (SDR11), PN20 (SDR9) |
| Diameter Range | DN200mm to DN800mm trunk mains |
| Standards Compliance | ISO 4427, GB/T 13663-2018, EN 12201-2 |
| Service Life | 50+ years design life |
| Temperature Range | -40°C to +40°C operating capacity |
Key Advantages PE100 hdpe pipe
1. Corrosion Elimination
Unlike metallic alternatives, SIFFO's PE100 pipes demonstrate complete immunity to electrochemical corrosion, soil chemical attack, and internal scaling—fundamentally solving the client's leakage crisis .
2. Monolithic Joint Integrity
Through butt fusion and electrofusion welding techniques, SIFFO created seamless, leak-free joints stronger than the pipe itself, eliminating the weak points inherent in mechanical jointing systems .
3. Seismic Adaptability
The inherent flexibility of PE100 material (allowing bending radius of 20-35× outer diameter) enables the system to absorb ground movement and seismic stress without fracture—critical for the region's geological conditions .
4. Hydraulic Efficiency
The exceptionally smooth internal surface (Manning's n ≤ 0.009) maintains optimal flow characteristics, reducing pumping energy requirements by an estimated 15% compared to rough iron pipe interiors .
SIFFO's Value-Added Services: Beyond Manufacturing
Comprehensive Installation Guidance Program
Recognizing that HDPE system performance depends critically on proper installation, Shandong SIFFO deployed a dedicated technical supervision team to ensure flawless execution:
Pre-Installation Phase:
Site survey and soil condition analysis
Trench design optimization (width: 1.5× pipe diameter minimum)
Bedding material specifications (sand/fine gravel foundation)
Fusion equipment calibration and operator certification
Installation Supervision:

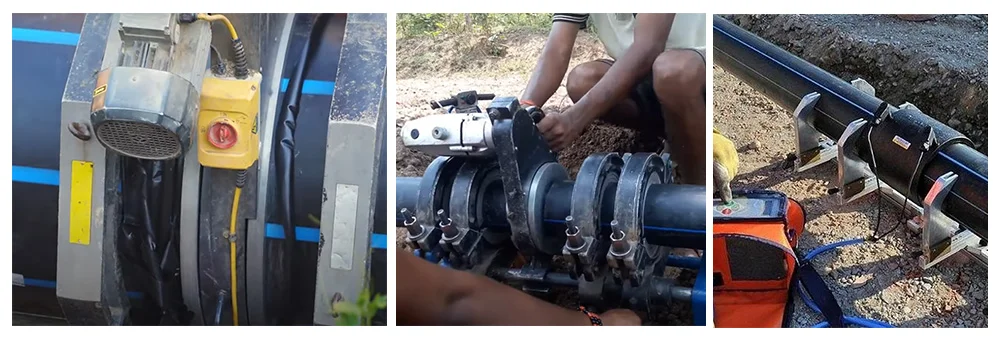

Butt Fusion Protocol: SIFFO engineers supervised the complete fusion process—pipe end facing, heating plate temperature control (200±5°C), fusion pressure management (0.15-0.3 MPa), and cooling time compliance (≥30 minutes)
Quality Verification: 100% visual weld inspection plus destructive testing of sample joints
Trenchless Technology Support: Horizontal Directional Drilling (HDD) guidance for 1.2km river crossing without excavation disruption
Post-Installation Validation:
Hydrostatic pressure testing at 1.5× working pressure
Leak detection surveys using acoustic monitoring
