Choosing a PVC pressure pipe involves more than matching a diameter to a drawing. Buyers need to understand the product standard, pressure classification, connection dimensions and approvals required for the intended application.

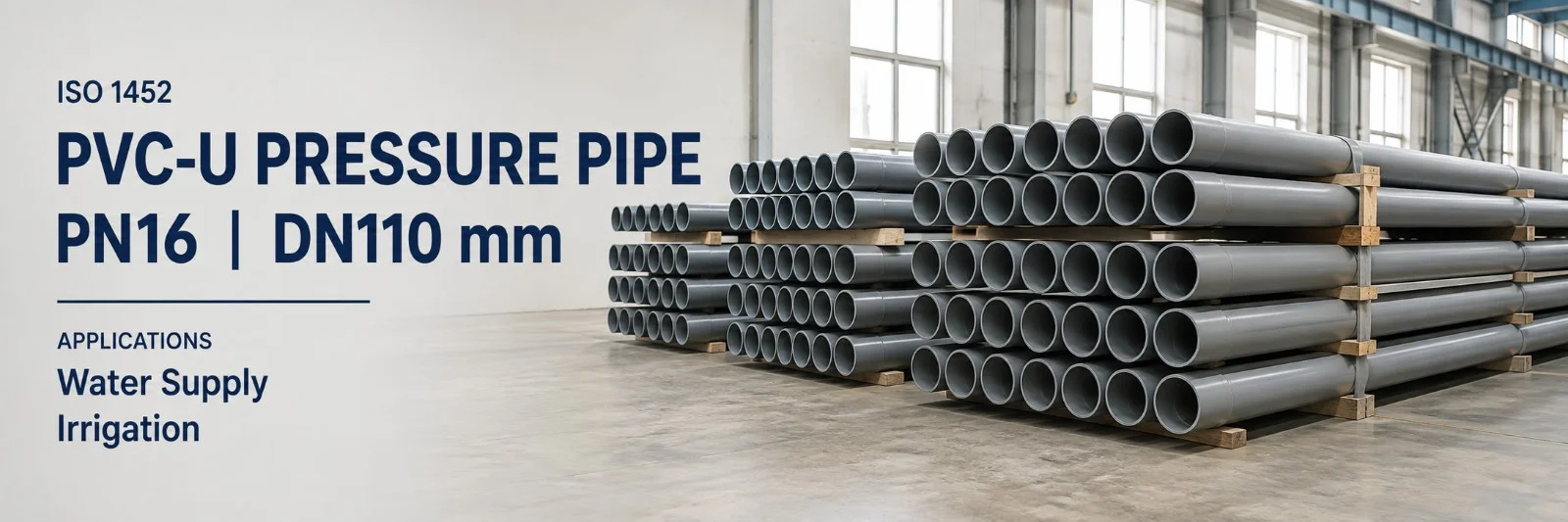

An ISO 1452 PN16 DN110 mm PVC pipe is a rigid PVC-U pressure pipe specified within an international standards framework. In this metric designation, 110 mm identifies the nominal outside diameter, while PN16 identifies the nominal pressure class. Neither marking, by itself, confirms suitability for every operating condition.
This guide explains the designation, the pipe’s main characteristics and applications, and the checks that help engineers and purchasing teams select a compatible piping system.
▎What Is ISO 1452?
ISO 1452 is an international standards series for solid-wall piping systems made from unplasticized polyvinyl chloride, abbreviated PVC-U and commonly called UPVC. Its scope includes water supply and pressure drainage and sewerage, with buried and above-ground applications.
▎Key Features of PN16 PVC-U Pressure Pipe
Corrosion resistance
PVC-U does not rust like ferrous metals. This makes it useful where soil or water conditions would otherwise create corrosion-related maintenance demands. The pipe body generally does not require the corrosion protection measures associated with metallic pipelines.
Chemical resistance still requires application-specific checks. The fluid, concentration, temperature and seal material must all be considered, especially in industrial service.
A smooth bore and manageable weight
PVC-U pressure pipe combines a smooth internal surface with relatively low weight. The smooth bore supports efficient flow, while manageable pipe sections can simplify delivery, handling and assembly. These are established characteristics of PVC-U pressure systems.
The practical benefit depends on the project. Pumping energy also depends on bore size, flow rate, pipeline length and fittings; lightweight material alone does not guarantee lower installed cost.
Connection options
PVC-U systems can use solvent-cemented or elastomeric ring-seal connections, depending on the selected product range. Relevant fitting requirements are addressed in ISO 1452-3. Specify the joint type explicitly when requesting pipe and fittings.
Neither joint should be described as automatically leak-free. Assembly quality, alignment and the correct joining materials remain essential.
▎Where Is ISO 1452 DN110 PN16 Pipe Used?
Municipal and community water distribution
A 110 mm PVC-U pressure pipe may suit distribution branches, connections between storage and distribution infrastructure, or extensions serving smaller developments. Water supply is a core application within ISO 1452.
Diameter selection must follow demand and pressure calculations. A short branch and a long rural main can require different diameters even when they deliver the same flow. Drinking-water use also requires the approvals applicable to the destination market.
Agricultural irrigation
Potential uses include buried irrigation mains, orchard distribution lines and supply connections to field zones. Irrigation is an established application for PVC-U pressure piping.
For a PN16 DN110 selection, evaluate pump shutoff pressure, elevation differences and valve operation. A pressure class that appears adequate at the pump may be inadequate at a lower point in the network during a transient event.
Water treatment and industrial utility water
PVC-U systems are used in water treatment and selected industrial services. A suitable 110 mm line could connect tanks, filtration equipment or utility-water distribution points.
For process fluids, check compatibility for the entire assembly, including cement, gaskets and valves. Acceptance for clean water does not establish suitability for every chemical mixture.
Pressure drainage and sewerage
ISO 1452 also covers drainage and sewerage operating under pressure. A 110 mm product may be considered for a pumped discharge where the hydraulic design supports that size.
Wastewater selection should consider solids, cleaning requirements and pump cycling. A pipe designed for gravity drainage should never be substituted merely because it has the same outside diameter.
▎What European and North American Buyers Should Check
European specifications may reference EN ISO 1452, often with a national prefix. Check the precise designation and edition required by the tender. ISO 1452 conformity and drinking-water acceptance are separate procurement questions.
In North America, projects may specify ASTM or AWWA products instead. ASTM D1785, for example, addresses PVC pipe in Schedule 40, 80 and 120 sizes. A metric PN16 designation is not a direct replacement for a schedule designation.
For drinking-water components, NSF/ANSI/CAN 61 evaluates health effects arising from contact with water. It does not replace dimensional compatibility checks or the project’s mechanical performance requirements. Verify the actual product listing and its scope rather than accepting a general certification claim.
▎FAQ
Is PN16 the same as 16 MPa?
No. PN16 corresponds to a nominal pressure of 16 bar, or 1.6 MPa, at the reference condition. Confusing bar and MPa creates a tenfold error.
Does DN110 mean a 110 mm internal diameter?
For this metric ISO 1452 pipe, 110 mm is the nominal outside diameter. The approximate bore is 96.8 mm when calculated using a 6.6 mm wall.
Is ISO 1452 PVC pipe suitable for hot water?
It should not be treated as a general hot-water plumbing product. Check the standard’s scope and the manufacturer’s pressure-temperature limits against the actual service conditions.
Does ISO 1452 conformity prove drinking-water approval?
No. Buyers should separately verify the drinking-water approval required for the destination market and confirm that it covers the supplied product.
Is a 110 mm pipe automatically compatible with four-inch fittings?
No. Metric and inch-based systems can have different outside diameters and socket dimensions. Specify an approved transition and confirm compatibility before purchasing.
Request a Project-Specific PVC-U Pipe Quotation
For an ISO 1452 PN16 DN110 mm PVC-U pipe inquiry, send Shandong SIFFO Plastic Technology Co., Ltd. your project location, operating pressure, temperature, required quantity and connection preference. Request confirmation of wall thickness, compatible fittings, test documentation and any drinking-water approvals required by the project. A complete specification helps turn a price inquiry into a technically comparable offer.
