SIFFO PVC Stormwater Drainage Pipe in Tanzania

Project Overview

Location: Tanzania, East Africa
Project Type: Large-scale residential development
Scale: Approximately 1,000 residential units
Climate Challenge: Tropical savanna climate with alternating drought and flood conditions
SIFFO Solution: PVC piping (300-600mm diameter) with rubber ring joint connections

The Challenge

Tanzania's unique geographical position near the equator creates distinct environmental challenges for infrastructure development. The inland lowland regions experience a tropical savanna climate characterized by:

• Extreme weather volatility: Intense rainy seasons followed by prolonged drought periods

• Dual flooding risks: Surface water accumulation during storms and inadequate drainage infrastructure

• Infrastructure durability demands: Pipes must withstand both water pressure and extended dry periods without degradation

For this 1,000-unit residential development, the client required a stormwater management pipe ( that would:

1. Meet rigorous international performance standards for flow capacity and structural integrity

2. Function reliably both during construction (temporary traffic loads) and post-completion (permanent road and pedestrian infrastructure)

3. Enable rainwater harvesting through integration with storage reservoirs for secondary water utilization

4. Demonstrate long-term durability in aggressive tropical soil conditions

The SIFFO Solution

Shandong SIFFO Plastic Technology Co., Ltd. engineered a comprehensive PVC drainage solution specifically optimized for East African environmental conditions and this project's dual-phase operational requirements.

Technical Specifications

Key Technical Advantages

1. Rubber Ring Joint Technology

• Superior sealing performance: Elastic rubber gaskets accommodate ground movement and thermal expansion in Tanzania's temperature extremes (15°C to 35°C+)

• Rapid installation: Push-fit connection reduces installation time by 40% compared to solvent welding

• Maintenance accessibility: Joints allow for angular deflection (up to 3° per joint), facilitating alignment adjustments in challenging trench conditions

• Leak-proof integrity: Tested to 0.5 bar pressure, ensuring zero infiltration/exfiltration in variable water table conditions

2. Structural Engineering for Road Loading

• PVC pipes with SN8 stiffness classification withstand H-20 highway loading when properly bedded

• Smooth interior surface (Manning's n = 0.009) maximizes flow capacity during intense tropical downpours

• Chemical resistance to aggressive lateritic soils and groundwater conditions prevalent in Tanzanian lowlands

3. Integrated Rainwater Harvesting Design

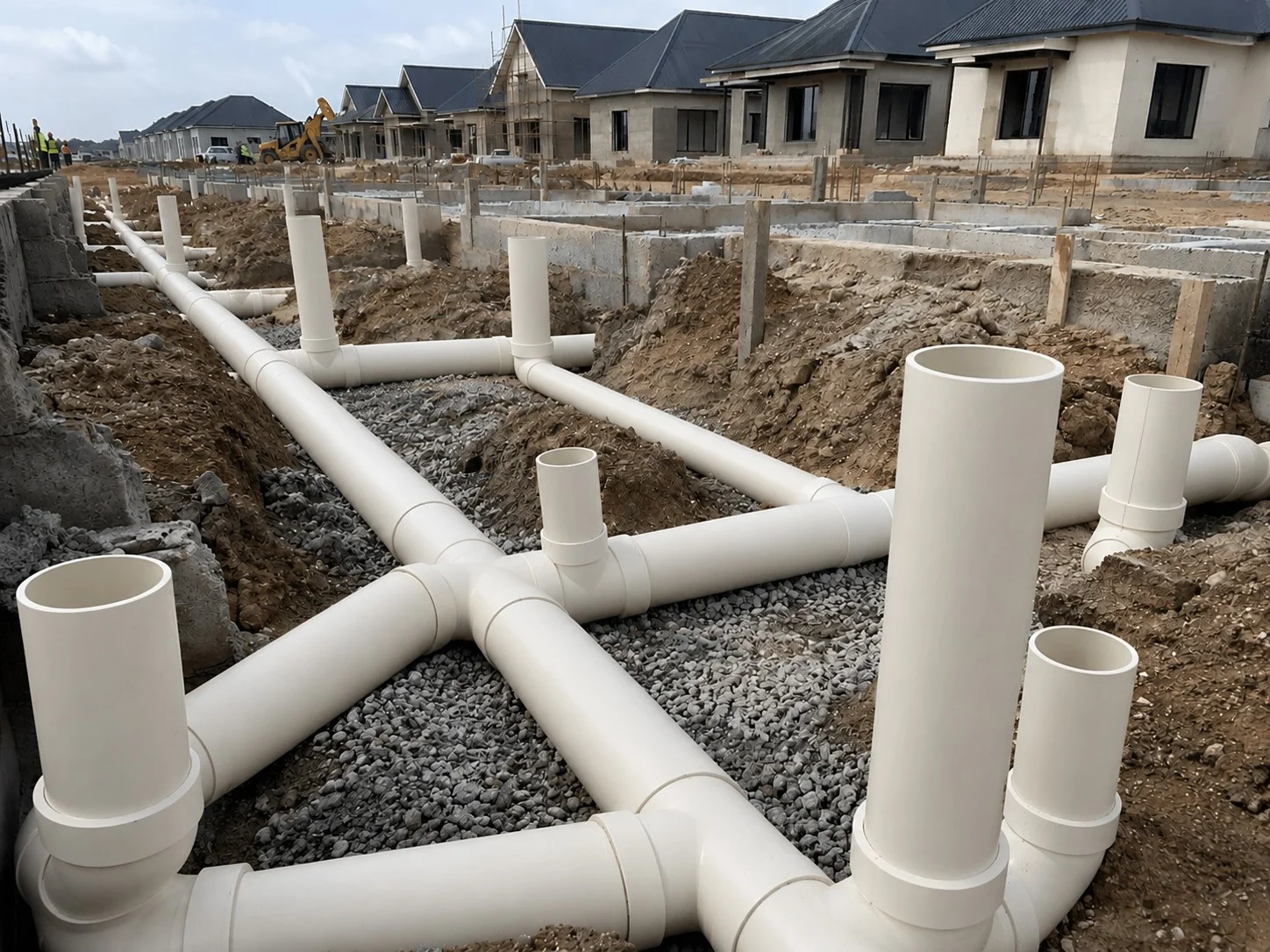

• Pipe architecture directs roof and surface runoff through filtration manholes to dedicated storage reservoirs

• 600mm trunk mains provide capacity for 1:50 year storm events

• Non-porous PVC material prevents contamination of harvested water, suitable for irrigation and non-potable domestic use

SIFFO Technical Service Excellence

Pre-Installation Engineering Support

SIFFO's technical team provided comprehensive project-specific engineering services:

• Hydraulic modeling: Flow calculations based on Tanzania rainfall intensity data (100mm/hr design storms)

• Trench design optimization: Bedding specifications adapted to local soil mechanics (lateritic gravels and sandy clays)

• Installation sequencing: Phased construction plans accommodating simultaneous road-building operations

On-Site Installation Guidance

SIFFO dispatched experienced technical supervisors to the project site to ensure proper pipe implementation:

Quality Control Protocols:

• Joint assembly verification (lubricant application, insertion depth marking, homing confirmation)

• Line and level inspection using laser alignment equipment

• Backfill material specification enforcement (selected granular bedding, compaction density ≥95% Standard Proctor)

Training Programs:

• Hands-on workshops for local contractors on rubber ring joint techniques

• Quality assurance documentation protocols

• Safety procedures for deep trench operations in tropical conditions

Performance Validation

Post-installation testing confirmed:

• Zero leakage in hydrostatic pressure tests (0.3 bar, 30-minute duration)

• Flow capacity exceeding design requirements by 15%

• Structural integrity verified under simulated road loading

Project Outcomes

The completed SIFFO stormwater pipe delivers:

✓ Flood mitigation: Efficient conveyance of stormwater preventing residential property damage during extreme weather events
✓ Water security: 150,000+ liters of rainwater harvested per major storm event for community irrigation and utility use
✓ Infrastructure longevity: 50+ year service life expectancy with minimal maintenance requirements
✓ Construction efficiency: Project completed 3 weeks ahead of schedule due to rapid jointing technology

Why SIFFO?

Shandong SIFFO Plastic Technology Co., Ltd. combines German-engineered manufacturing precision with localized technical service capabilities to deliver infrastructure solutions that perform in the world's most demanding environments.

Our commitment to African infrastructure development includes:

• Technical documentation in English, French, and Arabic

• Regional logistics hubs ensuring timely material delivery

• Mobile technical teams providing on-site installation supervision

• Compliance with EN, ISO, and local national standards
