SIFFO PVC-M Drainage Pipe Production Base

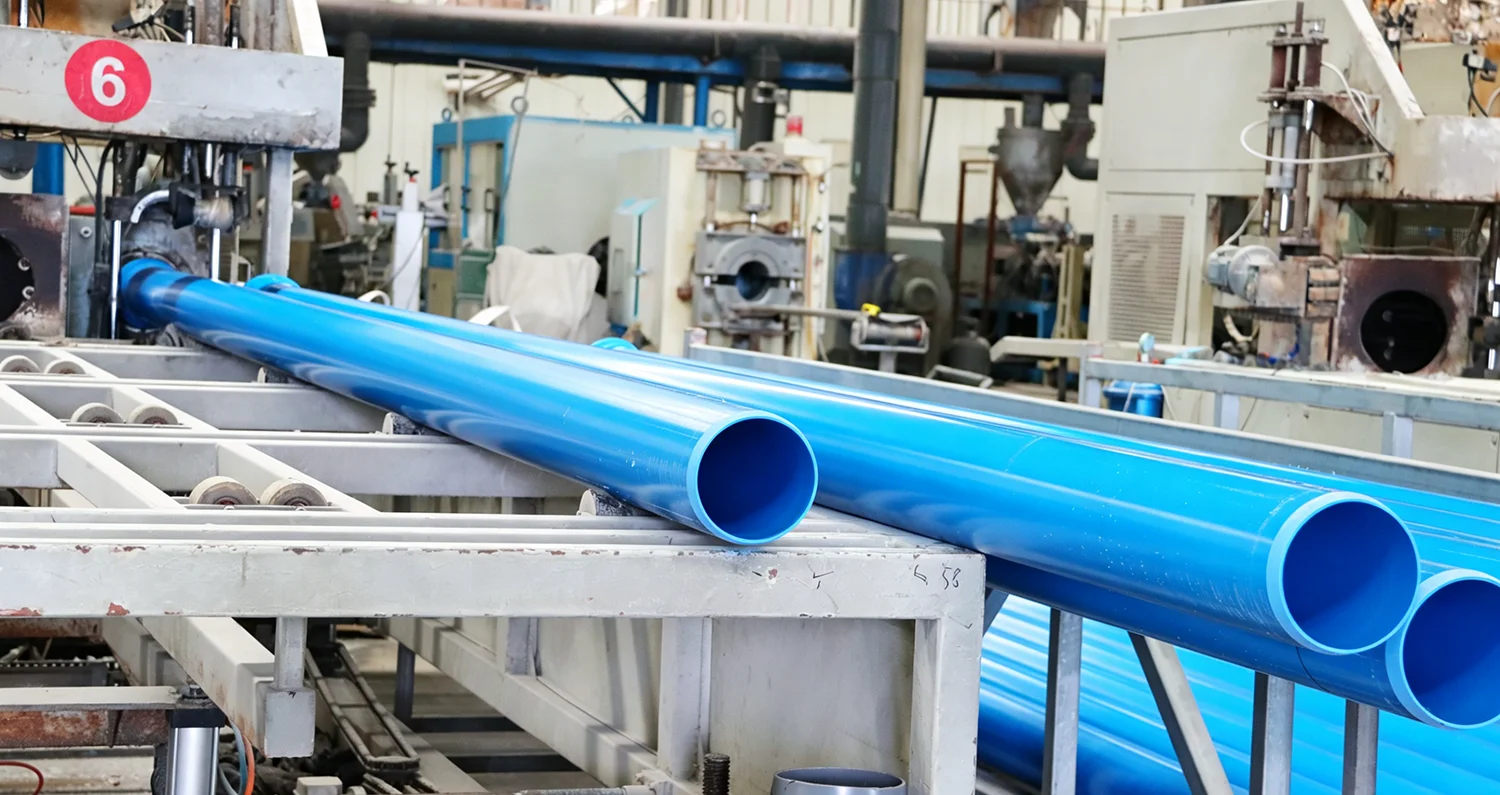

Stepping into SIFFO’s modern pipe production workshop, one is greeted by a scene of busy yet orderly activity. Beside extrusion line No. 6, bright blue PVC-M pipes move steadily along the conveyor belt; after undergoing cooling and precision cutting, they proceed to the critical pipe-flaring stage. This offers a glimpse into the daily operations of an industry-leading PVC-M drainage pipe production base—a facility boasting 15 high-efficiency production lines capable of an annual output of 150,000 tons at full capacity, truly setting a benchmark for large-scale operations in the sector.

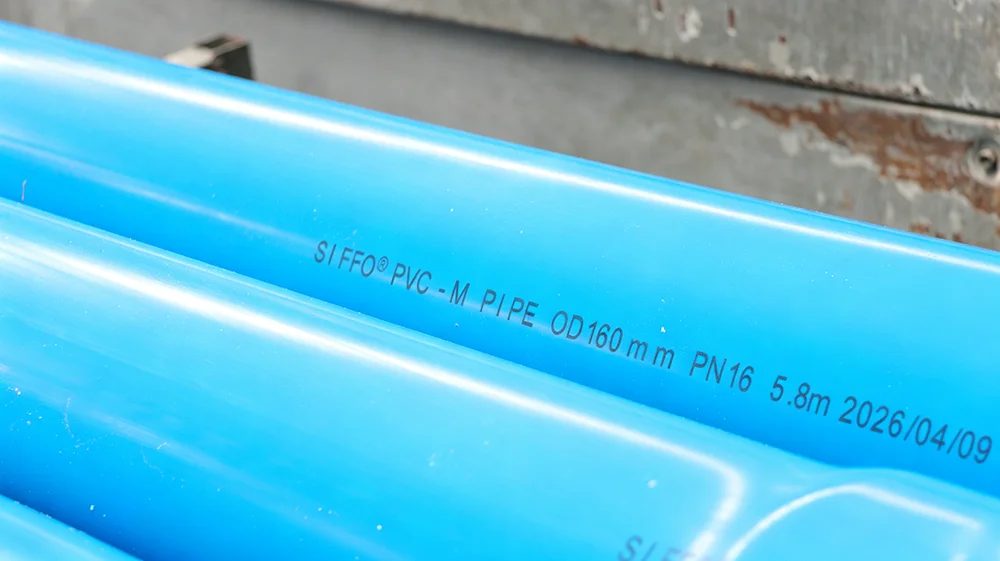

The pipe shown in the image—marked "SIFFO® PVC-M PIPE OD160mm PN16 5.8m 2026/04/09"—demonstrates outstanding performance specifications. PVC-M (impact-modified PVC) differs from standard PVC-U; it incorporates special impact modifiers into the PVC resin. Through physical and chemical modification, the material significantly enhances impact resistance and crack propagation resistance while maintaining excellent pressure-bearing strength. Compared to traditional UPVC pipes, it is lighter, offers superior pressure resistance (as indicated by the PN16 rating, signifying a 1.6 MPa pressure capacity), and performs better in low-temperature environments, effectively resolving the common issue of brittleness and cracking during transport and installation associated with traditional PVC piping.
SIFFO’s production process demonstrates a high level of industrialization and rigorous quality control:
Compounding and Extrusion: High-quality raw materials are mixed via an automated system and fed into an extruder, where they undergo high-temperature melting and plasticization before being formed into a pipe blank through a die. As shown in the production line image, the entire extrusion process—including wall thickness and pipe diameter—is precisely controlled by computer systems.

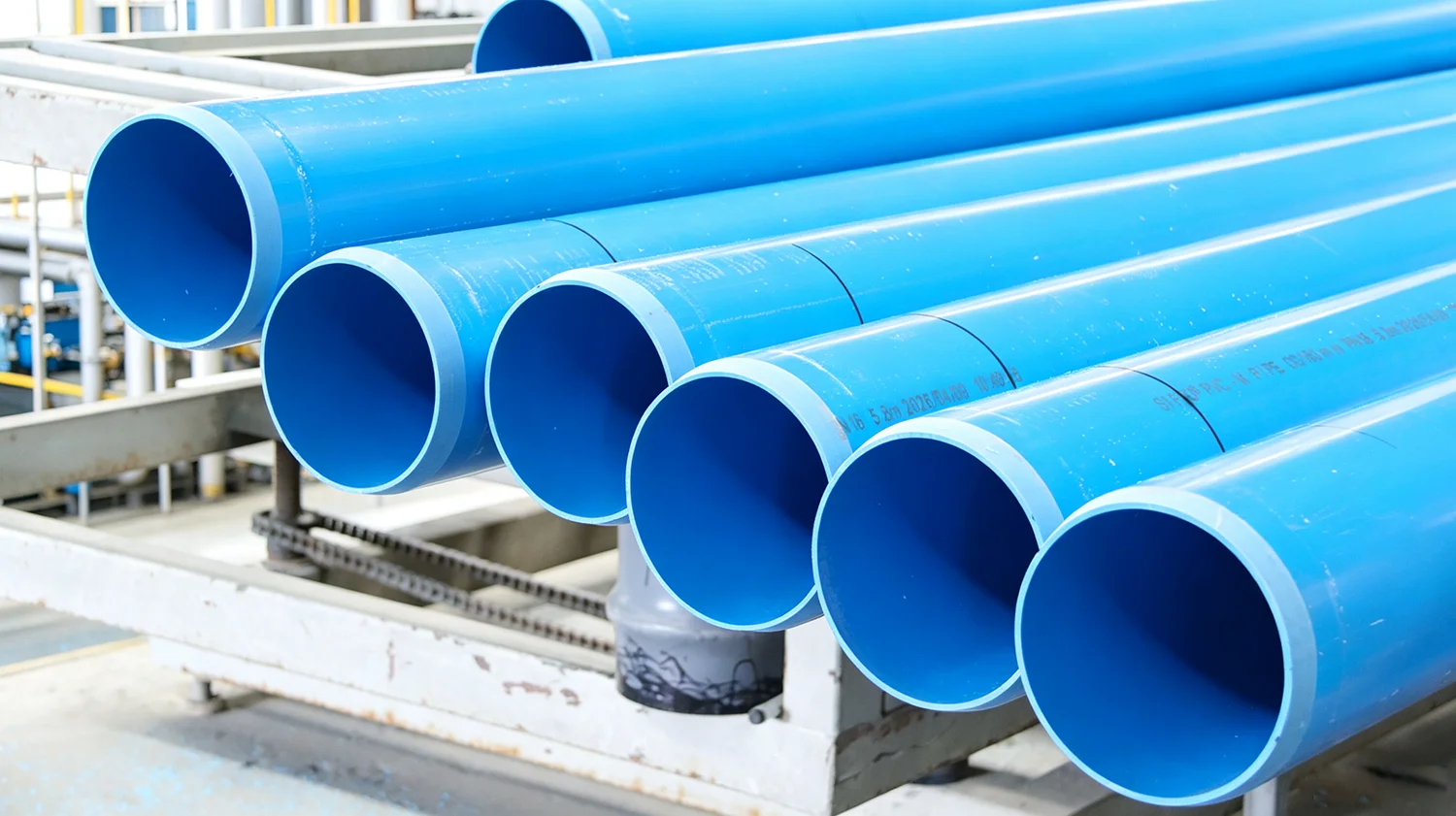

Vacuum Sizing and Cooling: Upon exiting the die, the hot pipe blank immediately passes through a vacuum sizing box for cooling and shaping; this ensures precise outer diameter dimensions (e.g., OD 160mm) and a smooth, uniform finish on both the inner and outer pipe walls.
Fixed-Length Cutting: Once cooling standards are met, the pipe is precisely cut to a standard length (e.g., 5.8m).

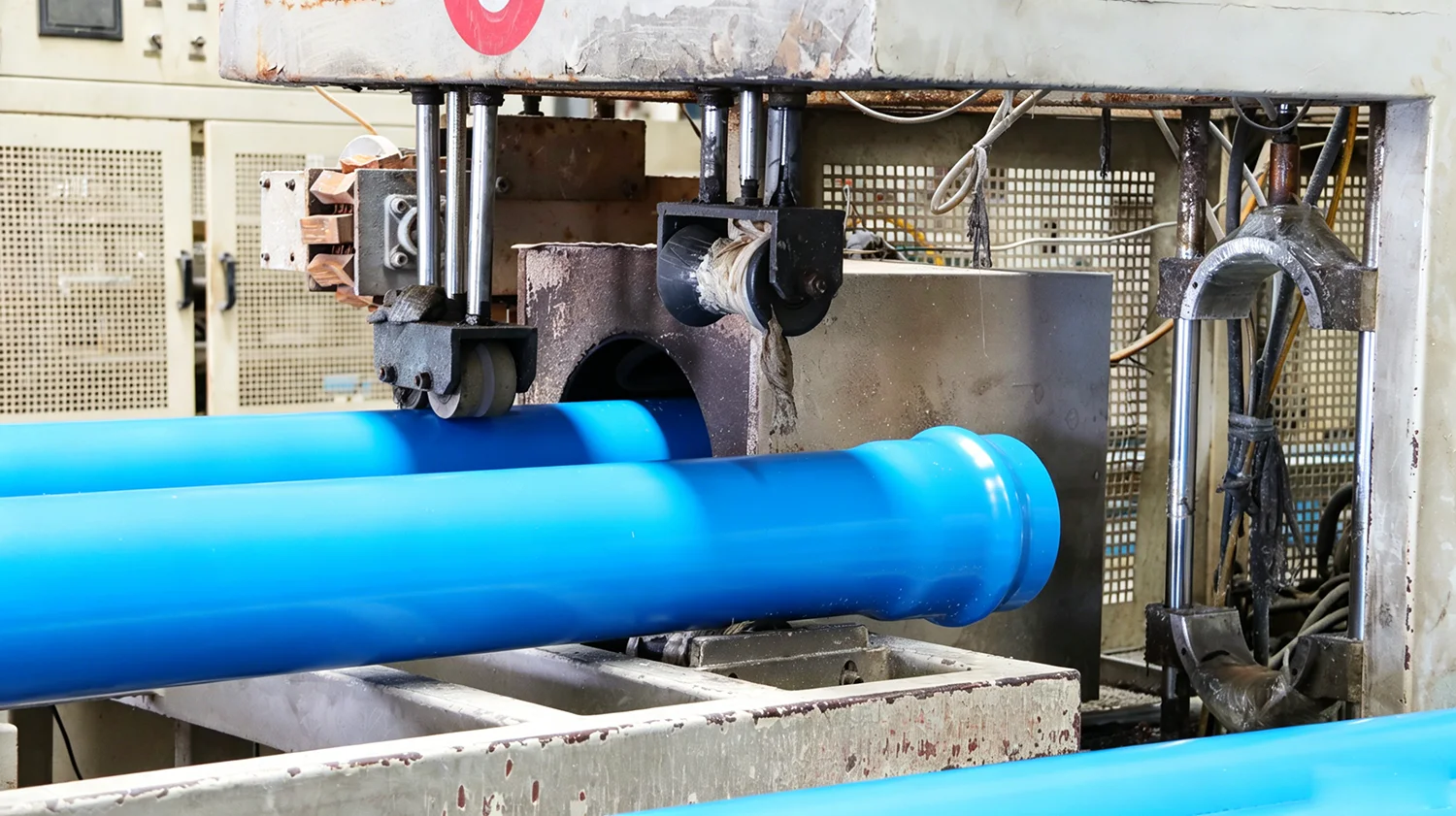

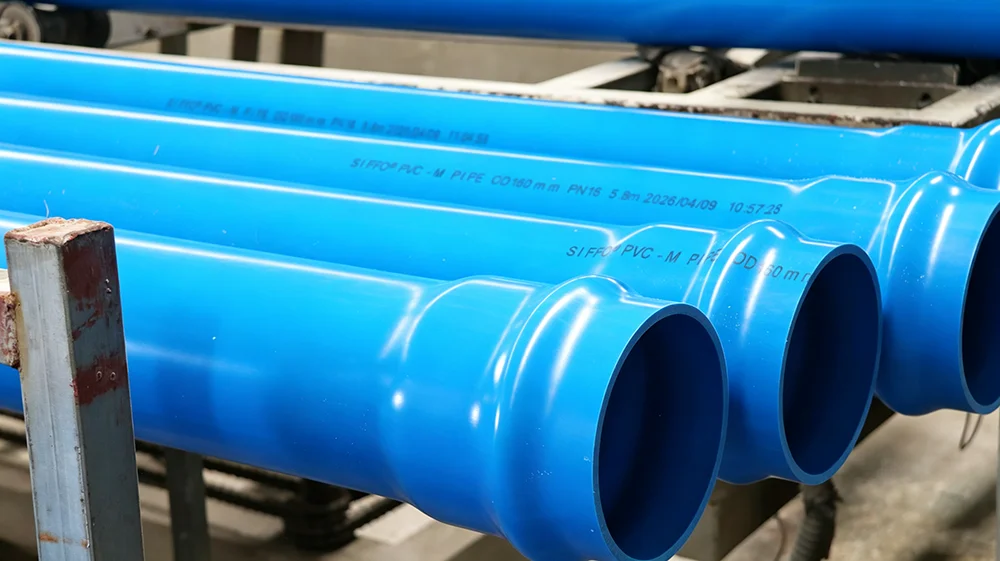

Socket/Flaring Formation (Core Process): This is a key feature of SIFFO piping. As clearly illustrated in Figures 2, 5, and 6, one end of the pipe is formed with an integral flared socket. The production line (Figure 3) utilizes a specialized automatic flaring machine that softens the pipe end via heating and then employs an internal mandrel to expand the material into a smooth socket. This design facilitates a flexible connection using a rubber sealing ring, ensuring rapid installation and reliable sealing performance.
Online Marking and Quality Inspection: Before the finished pipe leaves the line, an inkjet printer clearly marks the pipe body with the brand, material, specifications, pressure rating, and detailed production timestamp (e.g., April 9, 2026, and the specific time), ensuring 100% quality traceability for every pipe.

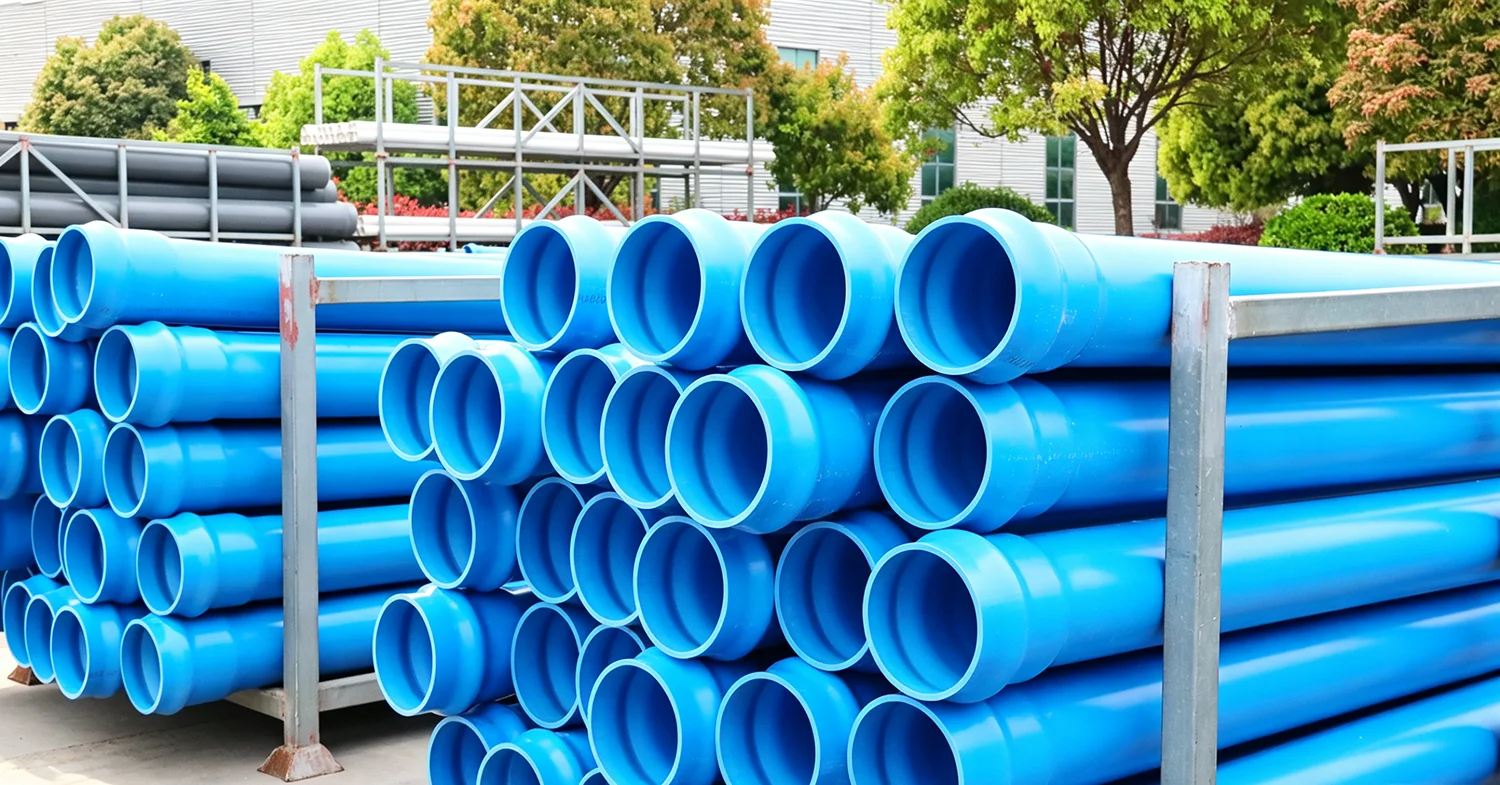

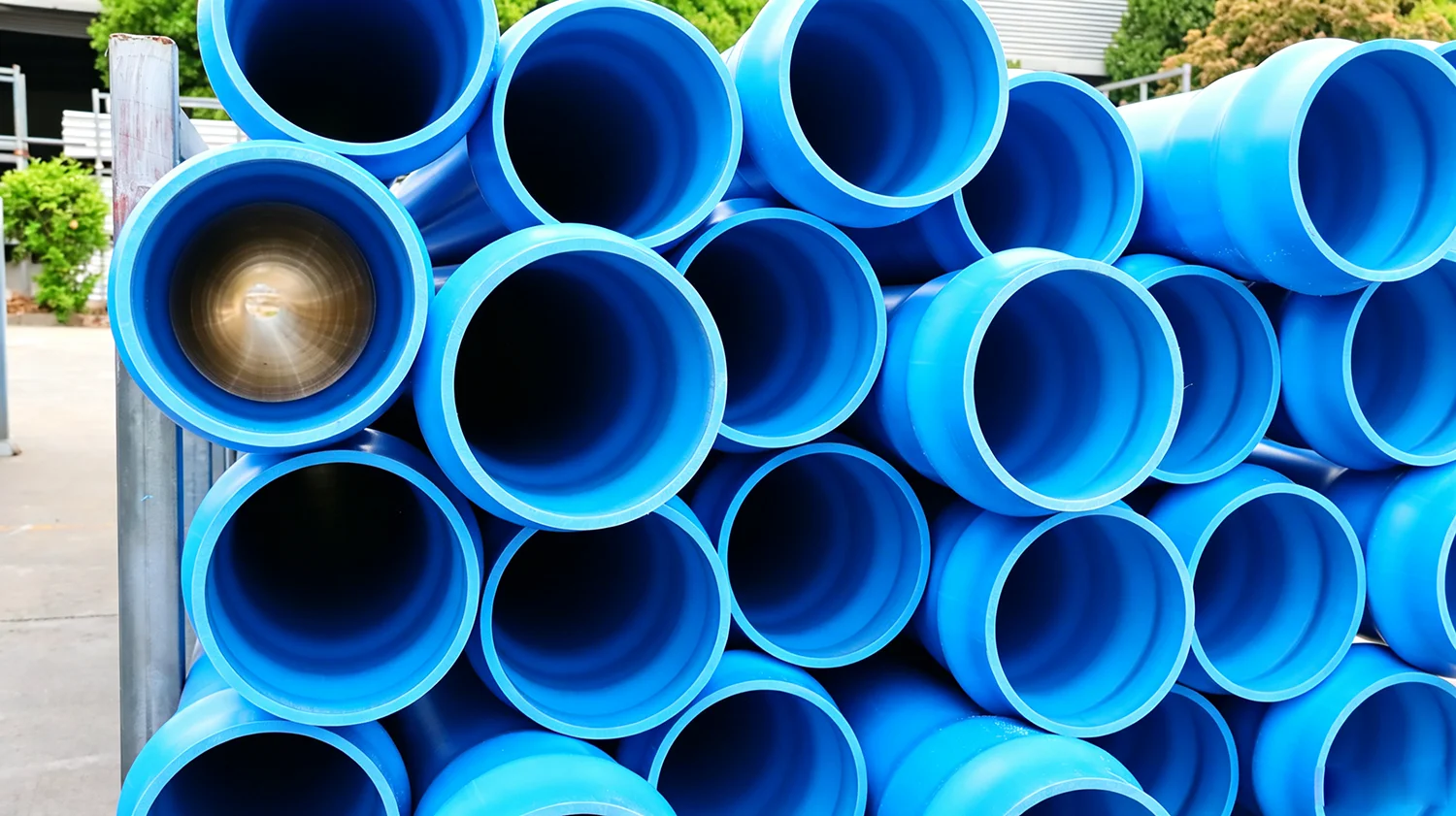

The large-scale nature of the production facility is a guarantee of market competitiveness. Fifteen modern PVC production lines operating at full capacity underpin the ambitious goal of an annual output of 150,000 tons—equivalent to a daily production of over 400 tons of high-quality PVC-M piping. Whether it is the individual extrusion unit shown in the image or the pipes neatly stacked in the outdoor yard (Figure 5), everything testifies to the company's robust supply capabilities and substantial strength.
Applications of PVC-M Pipes
With specifications such as PN16 (1.6 MPa pressure rating), an outer diameter of 160 mm, and PVC-M (impact-modified) material properties, this type of SIFFO pipe is suitable for a wide range of specific, practical applications.
I. Municipal Water Supply Networks and Rural Drinking Water Safety Projects (Core Application)
PVC-M piping is currently the preferred material for the renovation of urban water supply networks and rural "drinking water safety" projects.
Resistance to Water Hammer Effects: Municipal water supply networks frequently experience "water hammer effects" due to sudden pump shutdowns or the opening/closing of valves, causing instantaneous pressures to spike to several times the normal operating level. While standard PVC-U pipes are prone to brittle bursting under such conditions, modified PVC-M offers superior impact toughness; it effectively absorbs water hammer energy, significantly reducing the incidence of pipe bursts.
Prevention of Secondary Water Quality Contamination: The inner pipe wall is extremely smooth (with a roughness only 1/20th that of steel pipe) and possesses stable physical and chemical properties. Unlike metal pipes, it does not rust or accumulate scale, ensuring water purity during transport and compliance with national sanitary standards for drinking water.
Long-Distance Water Transport: Given the PN16 pressure rating shown in the diagram, these pipes are fully capable of serving as main supply lines for townships and even secondary urban water mains.
II. High-Efficiency Water-Saving Irrigation for Farmland (High-Standard Farmland Construction)
Pressurized Agricultural Irrigation Piping: PVC-M pipes are ideally suited for use as main and branch lines in drip and sprinkler irrigation systems. Their excellent impact resistance ensures that the pipes do not easily sustain hidden damage or rupture during field installation—even if accidentally run over by farm machinery or subjected to compaction by tractors during backfilling.
Reduced Long-Term Operating Costs: Thanks to extremely low internal wall roughness and minimal flow resistance, energy consumption for water pumps is significantly lower than with concrete or cast-iron pipes under the same operating pressure. This results in substantial electricity savings for agricultural projects requiring year-round pumping for irrigation.
III. Pressurized Sewage Transport and Industrial Circulating Water Systems
Pressurized Sewage Transport: The design featuring a socket-and-spigot rubber ring connection (a flexible joint) offers significant advantages in pressurized sewage transport projects. It not only withstands an internal water pressure of PN16 but also effectively resists longitudinal expansion/contraction and axial shear forces caused by fluctuations in the groundwater table or uneven foundation settlement, ensuring the long-term sealing integrity of sewage networks in challenging geological conditions.
Cooling Circulation Systems: In industrial settings such as power plants and chemical facilities, PVC-M is frequently used for the circulating transport of cooling water. It offers excellent chemical corrosion resistance (withstanding both acids and alkalis) and is lightweight—far lighter than metal piping—thereby significantly reducing the load on industrial pipe supports and lowering costs associated with structural steel infrastructure.
Leveraging China's leading plastic pipe manufacturing supply chain, SIFFO has not only established a firm foothold in the domestic market but is also actively expanding internationally. As evidenced by products bearing English-only labeling (e.g., "SIFFO PVC-M PIPE"), the brand strictly adheres to international standards. Backed by a robust production capacity of 150,000 tons and a modern production management system, the company currently exports in volume to Southeast Asia, the Middle East, Africa, and parts of Europe and the Americas. This ample capacity enables the company to guarantee stable delivery schedules and highly competitive product quality when fulfilling large-scale overseas engineering orders.
Looking ahead, SIFFO will continue to capitalize on the formidable manufacturing capabilities of its 15 production lines, delivering exceptional PVC-M piping products that provide solid, reliable "Chinese piping" solutions for global water transport and infrastructure development.
