Steel wire reinforced HDPE pipes are revolutionizing pipeline technology by combining the reliability of HDPE with the added strength of steel wire reinforcement. This combination provides these pipes with superior pressure resistance, enhanced temperature tolerance (via PERT modifications), and outstanding abrasion resistance (thanks to PERC technology). These advancements make steel wire reinforced HDPE pipes an ideal choice for demanding environments, including mining, industrial operations, and geothermal energy projects.
What is Steel Wire Mesh Reinforced HDPE Composite Pipe?

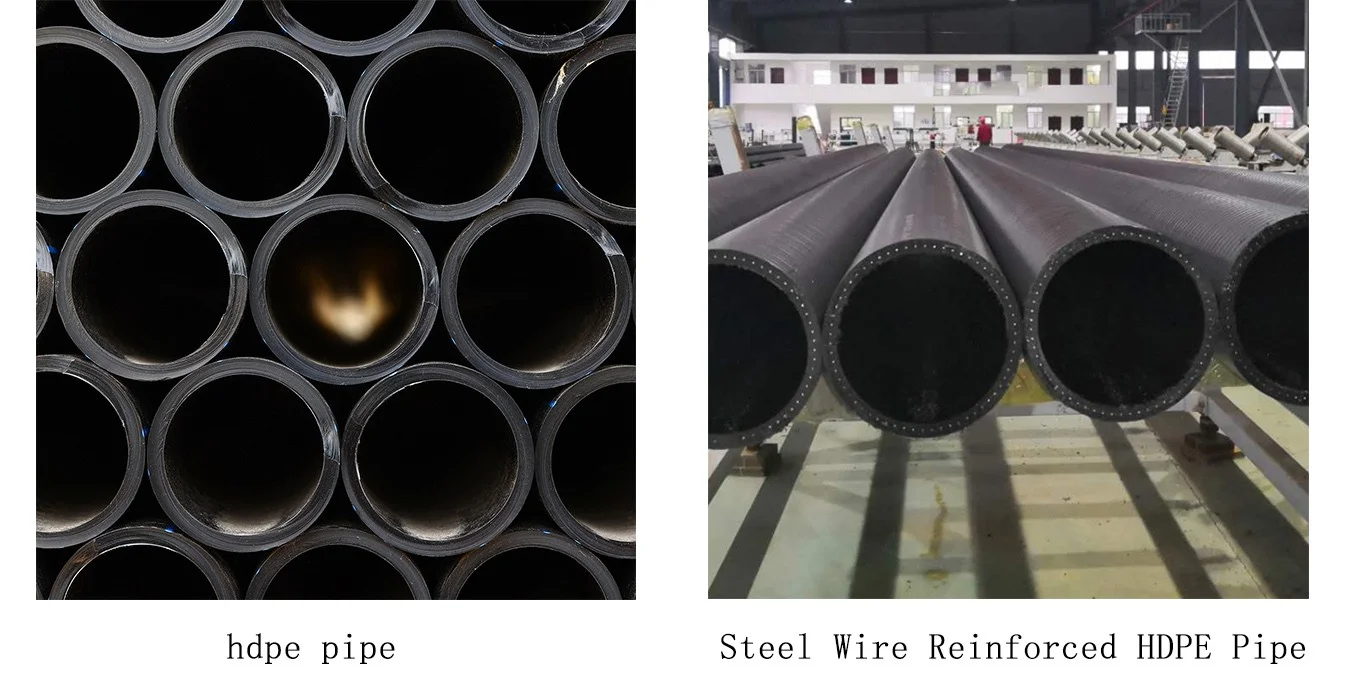

Steel wire mesh reinforced HDPE composite pipe (also known as SRTP pipe) is a high-performance pipe with a five-layer composite structure. A high-strength steel wire mesh skeleton is tightly bonded to the inner and outer layers of high-density polyethylene (HDPE) using hot melt adhesive, forming an inseparable integral structure. This design cleverly combines the high strength of steel pipes with the corrosion resistance of plastic pipes, overcoming the dual defects of traditional metal pipes being prone to corrosion and pure plastic pipes having insufficient pressure resistance.
Core structural components:
Inner layer: HDPE layer (can be modified to a PERT high-temperature resistant layer or a PERC wear-resistant layer)
Inner adhesive layer: Special hot melt adhesive, ensuring strong adhesion between layers
Reinforcing layer: High-strength galvanized steel wire or stainless steel wire woven mesh, providing core pressure resistance
Outer adhesive layer: Same material as the inner adhesive layer, ensuring structural integrity
Outer layer: HDPE protective layer, preventing soil corrosion and mechanical damage.
Key Features of Steel Wire Reinforced HDPE Pipes
Ultra-high pressure resistance: The reinforcing effect of the steel wire mesh skeleton enables the pipe to withstand pressure of over 3.5MPa, far exceeding that of ordinary HDPE solid-wall pipes. Experiments show that for every 10℃ increase in temperature, the strength reduction is controlled within 5%, and the thermal stability is significantly better than that of pure plastic pipes.
Temperature Resistance: With PERT modification, these pipes are capable of handling high-temperature conditions, making them suitable for geothermal energy projects where heat resistance is critical.
Abrasion resistance: PERC reinforced pipes have excellent abrasion resistance, more than 4 times that of steel pipes, and are specifically designed for conveying slurry and tailings in mines.
Excellent corrosion resistance and long service life: The inner and outer HDPE layers completely isolate the medium from the steel wire, solving the problem of steel pipe corrosion and extending the service life to over 50 years. It exhibits stability in acidic and alkaline environments with a pH range of 2-12.
Case Study 1: Mining Operations in Remote Locations
One of our clients in the mining sector faced challenges with traditional piping systems that were unable to withstand the harsh conditions of transporting slurry and ore through rugged terrains. After switching to steel wire reinforced HDPE pipes, the client reported a significant improvement in pipeline longevity and operational efficiency.
In this project, steel wire reinforced HDPE pipes were used for transporting high-abrasion slurry from the mining site to the processing plant. The PERC modification allowed the pipes to resist wear caused by the abrasive nature of the slurry, significantly reducing maintenance needs. Furthermore, the high pressure resistance of these pipes enabled the system to operate under high-load conditions without compromising on performance.

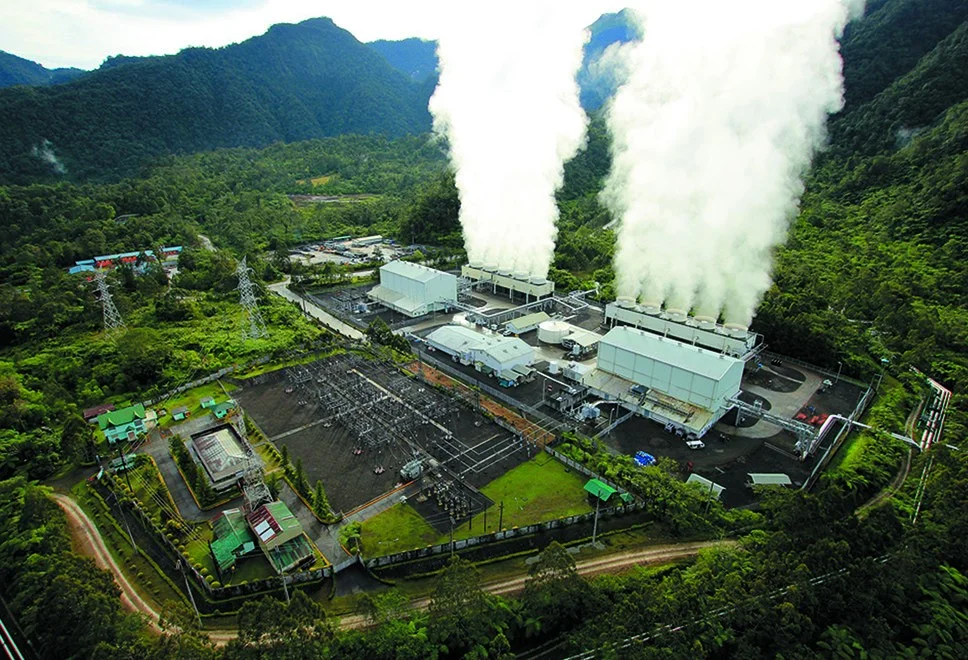

Case Study 2: Geothermal Energy Project in Iceland
In Iceland, a geothermal energy company needed a reliable piping solution to transport high-temperature steam from geothermal wells to the power plant. Conventional HDPE pipes lacked the necessary thermal resistance, leading to frequent failures. The company decided to implement steel wire reinforced HDPE pipes with PERT modifications for their geothermal system.

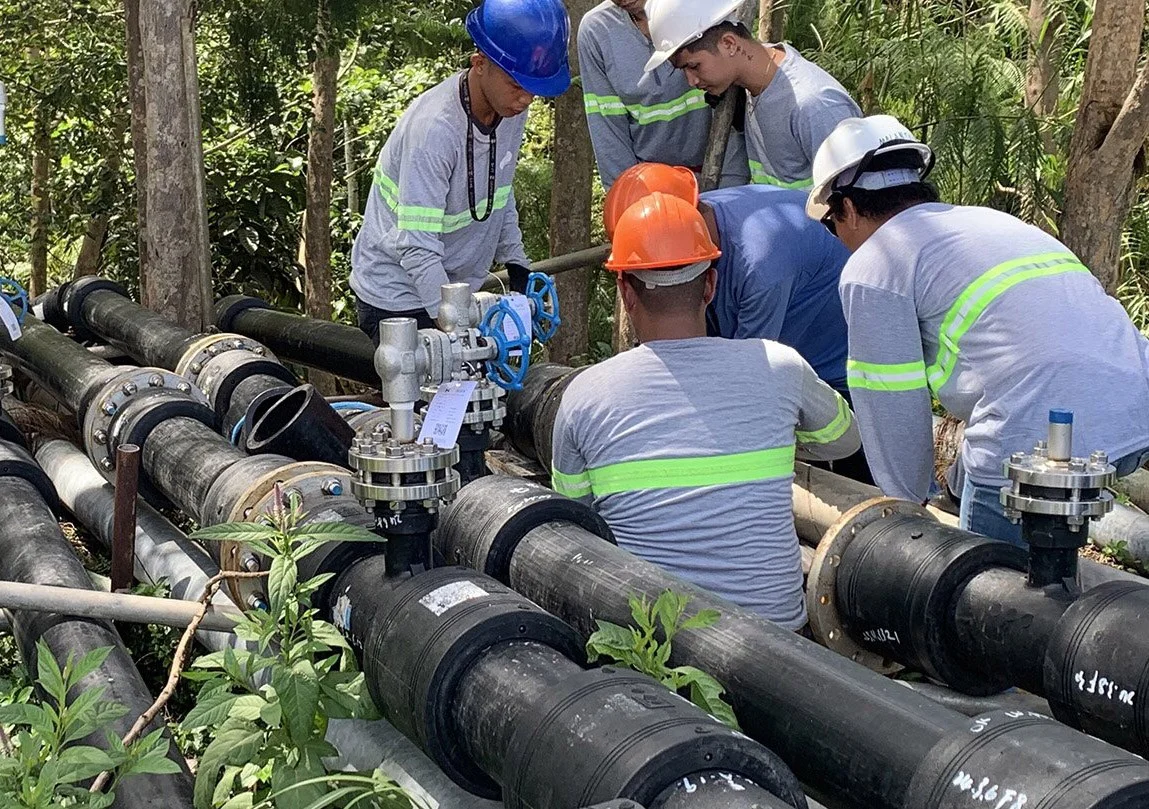

These pipes provided an ideal solution, offering both the high-temperature resistance needed for geothermal applications and the strength required to handle the pressure of steam. The installation was smooth due to the flexibility of the pipes, and the system has operated without issue for over three years, showcasing the pipes’ ability to withstand extreme heat and pressure. The addition of steel wire reinforcement also allowed the pipes to handle the challenges of underground installation, where stability is critical.
Applications in Mining and Industrial Projects
Steel wire reinforced HDPE pipes are especially useful in industries where pipelines are subjected to harsh conditions. Mining operations, for example, require pipes that can withstand constant abrasion, high pressure, and extreme environmental conditions. In addition to slurry transport, these pipes are used in water drainage systems and chemical fluid transport, providing unmatched reliability.
Applications in Geothermal Energy Projects
The geothermal energy sector is another key area where steel wire reinforced HDPE pipes excel. These pipes are ideal for transporting hot water or steam from geothermal wells to power plants. The ability to endure high temperatures (via PERT modifications) and the added strength from steel reinforcement ensures that the pipes perform efficiently and reliably throughout the life of the geothermal plant.
Conclusion: The Future of Pipeline Solutions
Steel wire reinforced HDPE pipes offer a versatile, durable, and high-performance solution for a wide range of applications, from mining and industrial projects to geothermal energy systems. Their combination of high pressure, temperature resistance, and abrasion resistance makes them the perfect choice for pipelines in challenging environments.
Our case studies demonstrate how steel wire reinforced HDPE pipes have transformed operations across industries, providing long-lasting, reliable pipeline systems that enhance productivity and reduce maintenance costs. Contact us today to learn more about how our steel wire reinforced HDPE pipes can benefit your next project.
